- Supermicro SYS-5039AD-i Mid Tower Barebone Single Processor

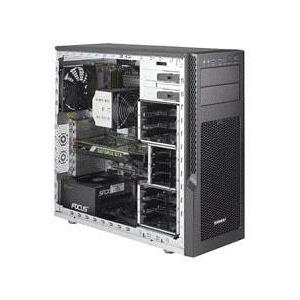

Supermicro SYS-5039AD-i Mid Tower Barebone Single Processor
• High-end Desktop
• Extreme Gaming
• High-performance computing
• Simulation and Creation Design
Mid-Tower Single Socket R4 LGA 2066 support Intel Core i9/i7/i5 X-Series - Support up to 256GB DDR4 non-ECC Unbuffered memory (UDIMM) in 8x slots - On-Board : 6x SATA3 (6Gbps) via Intel X299 chipset (RAID 0, 1, 5, 10), 1x Gigabit LAN, 1x 5G LAN, 1 VGA, HD Audio - Includes : 6x 3.5in Fixed and 4x Fixed 2.5in drive bays, 750W Multi Output Power Supply (PWS-754PQ), MBD-C9X299-PGF Motherboard, CSE-GS5A-754K-754K Mid-Tower Chassis (Black)
This product is no longer available.
1. Single Socket R4 supports Intel® Core™ i9/i7/i5 X-Series, and Intel® Core™ i9 Extreme X-Series Processors
2. Intel® X299 chipset
3. Up to 256GB Non-ECC UDIMM, DDR4-2666MHz, in 8 DIMM slots
4. 4 PCI-E 3.0 x16; 1 PCI-E 3.0 x1, 2 M.2 M key with Intel® Optane™ support, and 2 U.2
5. 6 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
6. 5G LAN and 1GbE LAN
7. 6 fixed 3.5" and 4 fixed 2.5" drive bays 2 standard 5.25" drive bays
8. 1 VGA, ALC 1220 7.1 HD Audio
9. 2x 12cm front cooling fan; 1x 12cm rear exhaust fan
10. 750W Multi-output Power Supply
Extra Specifications for Supermicro SYS-5039AD-i Mid Tower Barebone Single Processor
| System Memory | ||
| Memory Capacity | 8x 288-pin DDR4 DIMM slots | |
| Supports up to 256GB DDR4 Non-ECC Un-Buffered memory (UDIMM) | ||
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB | |
| Memory Type | 2666/2400/2133/1866/1600MHz Non-ECC DDR4 288-pin UDIMM | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | Intel® X299 Chipset | |
| IPMI | ASPEED AST2500 | |
| Network Controllers | Single LAN with Aquantia 5G LAN chip AQC108 | |
| Single LAN with Intel® Ethernet Controller I210-AT, shared IPMI port | ||
| SATA | SATA3 via PCH w/ RAID 0, 1, 5, 10 | |
| Audio | ALC 1220 7.1 HD Audio | |
| Input / Output | ||
| SATA | 6 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| USB | 4 USB 3.0 ports (2 rear + 2 front) | |
| 4 USB 3.1 ports (rear, 3 Type A + 1 Type C) | ||
| Display | 1 VGA port | |
| Serial Port / Header | 1 COM Port (1 header) | |
| System BIOS | ||
| BIOS Features | ACPI 3.0 or later | |
| SMBIOS 2.7 or later | ||
| SPI dual/quad speed support | ||
| BIOS rescue hot-key | ||
| Overclock support | ||
| BIOS Type | UEFI 128Mb | |
| Front Panel | ||
| Buttons | Power On/Off Button | |
| Reset Button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| Ports | 2 USB 3.0 ports | |
| 1 Earphone, 1 Microphone port | ||
| Drive Bays | ||
| Fixed | 6 fixed 3.5" drive bays | |
| 4 fixed 2.5" drive bays | ||
| Peripheral | 2 standard 5.25" drive bays | |
| System Cooling | ||
| Fans | 1x 12cm rear exhaust fan | |
| 2x 12cm front cooling fans | ||
| Power Supply | ||
| Certification | Gold Certified | |
| Power Supply | 750W Multi-output Power Supply for Desktop, semi-modular cable output | |
| AC Input | 100-240Vac, 50-60Hz | |
| +5V | Max: 20A & Min: 0A | |
| +12V | Max: 62A & Min: 0.1A (100Vac-240Vac) | |
| +3.3V | Max: 20A & Min: 0A | |
| +5V SB | Max: 2.5A & Min: 0A | |
| -12V | Max: 0.3A | |
| PC Health Monitoring | ||
| FAN | 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors | |
| Other Features | ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, Voltage and Frequency Overclocking, WOL | |
| Voltage | +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT | |
| Product SKUs | ||
| Product SKUs | SYS-5039AD-I (Black) | |
| Motherboard | ||
| Motherboard | Super C9X299-PGF | |
| Processor/Cache | ||
| CPU | Single socket R4 (LGA 2066) supported, CPU TDP support up to 165W | |
| Intel® Core™ i9/i7/i5 X-Series, and Intel® Core™ i9 Extreme X-Series Processors (Skylake-X/Cascade Lake-X) | ||
| Expansion Slots | ||
| PCI-Express | 4 PCI-E 3.0 x16 slots | |
| 1 PCI-E 3.0 x1 slot | ||
| *** 4 PCI-E 3.0 x16 slots (8/NA/16/16 or 8/8/8/16 or NA/4/8/16 (Skylake-X 28 Lanes/Cascade-X 48 Lanes) or NA/4/4/8 (Kabylake-X), 1 PCI-E 3.0 x1 slot *** | ||
| M.2 | M.2 Interface: 2 PCI-E 3.0 x4 | |
| Form Factor: slot1: 22110/2280, slot2: 2280 | ||
| Key: M-Key (RAID 0, 1 support) | ||
| M-Key for SSD and Optane | ||
| U.2 | U.2 Interface: PCI-E 3.0 x4 (Skylake-X/Cascade-X) | |
| Chassis | ||
| Form Factor | Mid-Tower | |
| Model | CSE-GS5A-754K | |
| Dimensions and Weight | ||
| Height | 18.1" (460mm) | |
| Width | 7.9" (201mm) | |
| Depth | 19.4" (493mm) | |
| Package | 24.9" (H) x 14.2" (W) x 24.0" (D) | |
| Weight | Net Weight: 22.27 lbs (10.1 kg) | |
| Gross Weight: 28.22 lbs (12.8 kg) | ||
| Available Colors | Black | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Heat Sink | SNK-P0050AP4 | $ 82.50 | 0 | Active CPU Heat Sink | ||
| Heat Sink(CPU TDP >= 165W) | SNK-P3017A | $ 249.50 | 0 | Liquid Cooling Module w/ a 3-pin Pump Connector for SYS-5038AD-I and SYS-5039AD-T | ||
| Cable(for 2.5" NVMe drives) | CBL-SAST-0957 | 0 | Mini SAS HD to PCIe SFF-8639 w/ Power, 55CM, 45CM, 34 AWG,RoHs | |||
| Intel VROC Standard | AOC-VROCSTNMOD | $ 176.00 | 0 | Intel VROC Upgrade Module Standard supports RAID 0/1/10 | ||
| Intel VROC Premium | AOC-VROCPREMOD | $ 344.50 | 0 | Intel VROC Premium Module Premium supports RAID 0/1/10/5 | ||
| Intel VROC | AOC-VROCINTMOD | 0 | Intel VROC Upgrade Module for Intel SSD only, RAID 0/1/10/5 | |||
| DVD-ROM & Cables | DVM-LTE-DVDRW24-HBT | 0 | Black LITE-ON 5.25" HH 24X DVD-RW SATA drive PBF | |||
| DVD-ROM & Cables | CBL-0082L | $ 17.00 | 0 | Y split, big 4-pin to two RA SATA power extension 15cm, 18AWG | ||
| DVD-ROM & Cables | CBL-SAST-0624 | 0 | SATA, INT, ROUND, ST-ST, 70cm, 30AWG |
