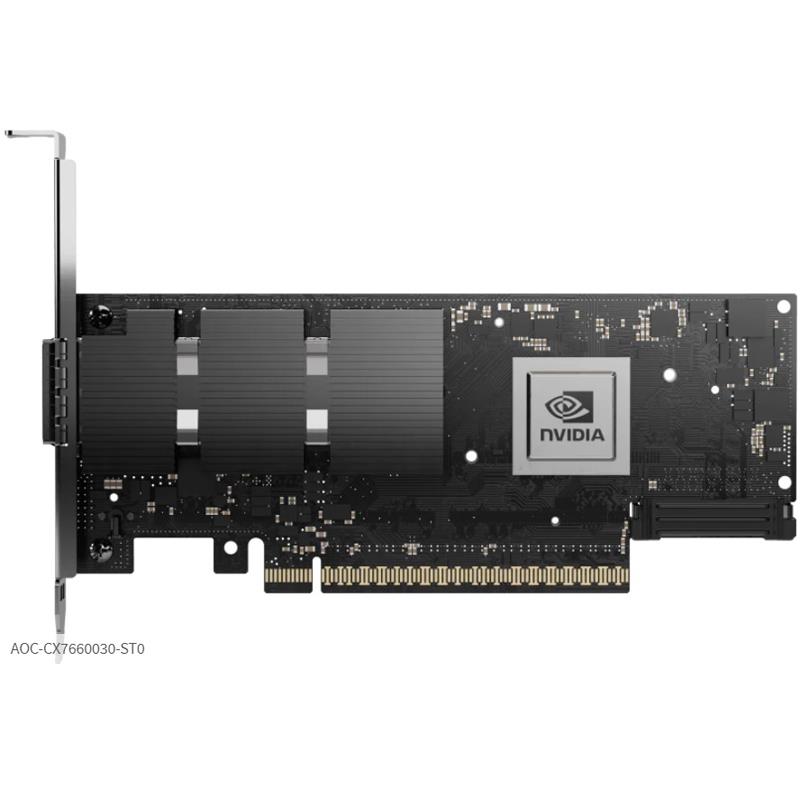

  2. Supermicro AOC-CX7660030-ST0 Adapter Card PCIe 5.0 x16 HHHL Standard NDR200 InfiniBand (200Gb/s) 1 OSFP Port - NVidia P/N 900-9X766-003N-ST
Supermicro AOC-CX7660030-ST0 Adapter Card PCIe 5.0 x16 HHHL Standard NDR200 InfiniBand (200Gb/s) 1 OSFP Port - NVidia P/N 900-9X766-003N-ST

Supermicro AOC-CX7660030-ST0 Adapter Card PCIe 5.0 x16 HHHL Standard NDR200 InfiniBand (200Gb/s) 1 OSFP Port - NVidia P/N 900-9X766-003N-ST

  • Single OSFP InfiniBand and Ethernet

  • Secure Boot Enabled, Crypto Disabled

  • InfiniBand 200Gb/s, Support Ethernet up to 200Gb/s

200Gb/s Adapter Card, ConnectX-7 With Secure Boot, Half Height, Half Length, PCIe x16 Gen 4.0/5.0 @ SERDES 16GT/s/32GT/s, Provide Single-port OSFP, Data Transmission Rate: InfiniBand: NDR200 200Gb/s (Default speed) and Ethernet: 200GbE Supports InfiniBand and Ethernet Protocols From Hardware Version A7 and Higher), Tall Bracket Included, (900-9X766-003N-ST) NVIDIA Part Number: MCX75310AAS-HEAT

$ 0.00$ 0.000.0USD

$ 0.00

Option not available

PreOrder
1 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    High performance computing and artificial intelligence have driven supercomputers into wide commercial use as the primary data processing engines enabling research, scientific discoveries and product development. These systems can carry complex simulations and unlock the new era of AI, where software writes software. NVIDIA InfiniBand networking is the engine of these platforms delivering breakthrough performance.

    Extra Specifications for Supermicro AOC-CX7660030-ST0 Adapter Card PCIe 5.0 x16 HHHL Standard NDR200 InfiniBand (200Gb/s) 1 OSFP Port - NVidia P/N 900-9X766-003N-ST

    Main Specifications
    Device TypeInfiniBand Adapter Card
    Form FactorHalf Height, Half Length
    InterfacePCIe Gen 4.0/5.0 x16
    Dimensions2.71 in. x 6.6 in. (68.90mm x 167.65 mm)
    Performance
    Internal Data RateInfiniBand (Default): NDR200/HDR/HDR100/EDR/FDR/SDR
    Ethernet: 200/100/50/40/10/1 Gb/s Ethernet
    Expansion / Connectivity
    Expansion / ConnectivitySingle OSFP InfiniBand and Ethernet
    Compliance
    SafetyCB / cTUVus / CE
    EMCCE / FCC / VCCI / ICES / RCM / KC
    Miscellaneous
    Environmental ComplianceRoHS Compliant
    Included AccessoriesTall Bracket
    Environmental
    Operating EnvironmentHumidity Operational: 10% to 85% relative humidity
    Temperature Operational: 0°C to 55°C
    Temperature Non-operational: -40°C to 70°Cb
    Humidity Non-operational: 10% to 90% relative humidity

    If you need Technical Support for this item please contact:

    Provider:Nvidia
    Type of Support:FULL
    Phone No.:800-797-6530
    URL:Click here for Manufacturer Website
