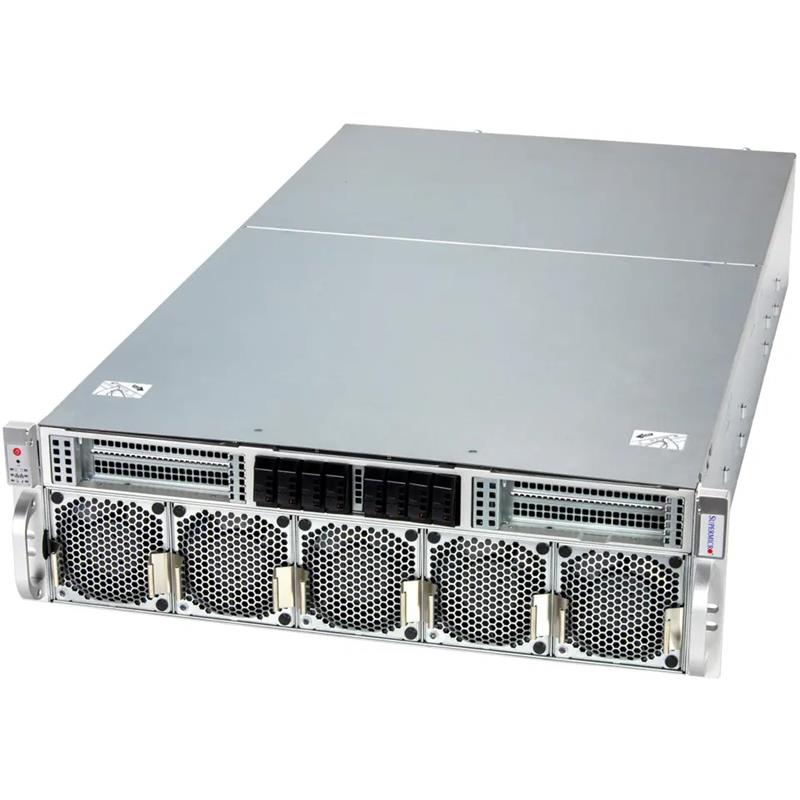

  2. Supermicro SYS-322GA-NR IoT 3U Barebone Dual Intel Xeon 6900 Series Processors With P-cores
Supermicro SYS-322GA-NR IoT 3U Barebone Dual Intel Xeon 6900 Series Processors With P-cores
Supermicro SYS-322GA-NR IoT 3U Barebone Dual Intel Xeon 6900 Series Processors With P-cores
Supermicro SYS-322GA-NR IoT 3U Barebone Dual Intel Xeon 6900 Series Processors With P-cores
Supermicro SYS-322GA-NR IoT 3U Barebone Dual Intel Xeon 6900 Series Processors With P-cores
Supermicro SYS-322GA-NR IoT 3U Barebone Dual Intel Xeon 6900 Series Processors With P-cores
Supermicro SYS-322GA-NR IoT 3U Barebone Dual Intel Xeon 6900 Series Processors With P-cores
Supermicro SYS-322GA-NR IoT 3U Barebone Dual Intel Xeon 6900 Series Processors With P-cores

Supermicro SYS-322GA-NR IoT 3U Barebone Dual Intel Xeon 6900 Series Processors With P-cores

• High Performance Computing
• AI/Deep Learning Training
• Industrial Automation, Retail
• Healthcare
• Conversational AI
• Business Intelligence & Analytics
• Drug Discovery
• Climate and Weather Modeling
• Finance & Economics
• Edge AI Inferencing

Barebone 3U Rackmount SuperServer, Support Dual Socket BR (LGA-7529), Supporting Intel Xeon 6900 Series Processors With P-cores, Up To 128C/256T, 504MB Cache per CPU, Supports up to 500W TDP CPUs (Air Cooled). Support up to 8 Double Width Full Height Full Length GPU or 19 Single Width GPU. Up to 6TB in 24 DIMM slots, DDR5-8800 RDIMM/MRDIMM, Chipset: System on Chip, Drive Bays / Storage: Optional. Network Connectivity: 1 RJ45 1 GbE Dedicated BMC LAN Port, Others: 2x USB Ports, 1 VGA Port, 1 TPM Header, Optional Configuration For Power Supply - (CSE-MX301TS-R0NDFP + X14DBG-XAP) - SYS-322GA-NR

$ 5,398.00$ 5,398.005398.0USD

$ 5,398.00

Option not available

PreOrder
71 lb

    This combination does not exist.

    Add to Cart

    1. Dual Intel® Xeon® 6900-Series Processors with P-cores up to 500W
    2. 24 DIMMs supporting up to 6TB 6400MT/s DDR5 RDIMM or 6TB 8800MT/s DDR5 MRDIMM
    3. Up to 10 PCIe 5.0 x16 FHFL or 20 PCIe 5.0 x8 FHFL slots
    4. 6/8/14 hot-swap E1.S NVMe drive bays or 2/4/6 hot-swap 2.5" NVMe drive bays
    5. 3x 3200W or 2700W Redundant (2+1) Titanium Level power supplies
    6. Support up to 8 Double Width Full Height Full Length GPU or 19 Single Width GPU

    Extra Specifications for Supermicro SYS-322GA-NR IoT 3U Barebone Dual Intel Xeon 6900 Series Processors With P-cores

    Product SKUs
    Product SKUsSYS-322GA-NR
    Motherboard
    MotherboardSuper X14DBG-XAP
    Processor
    CPUDual Socket BR (LGA-7529)
    Intel® Xeon® 6900 series processors with P-cores
    Core Count128C/256T; 504MB Cache per CPU
    NoteSupports up to 500W TDP CPUs (Air Cooled)
    GPU
    Max GPU CountUp to 8 double-width or 19 single-width GPUs
    Supported GPUView GPU Options
    NVIDIA PCIe: H100 NVL, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB), L40S
    CPU-GPU InterconnectPCIe 5.0 x16 CPU-to-GPU Interconnect
    GPU-GPU InterconnectNVIDIA® NVLink® Bridge (optional)
    System Memory
    MemoryView Memory Options
    Slot Count: 24 DIMM slots/1 Channels
    Max Memory (1DPC): 6TB 6400MT/s ECC DDR5 RDIMM
    Max Memory (1DPC): 6TB 8800MT/s ECC DDR5 MRDIMM
    Memory Voltage1.1V
    On-Board Devices
    ChipsetSystem on Chip
    Network ConnectivityView AOC Options
    Input / Output
    LAN1 RJ45 1 GbE Dedicated BMC LAN port
    USB2 USB 3.2 Gen1 Type-A ports
    Video1 VGA port
    TPM1 TPM header
    System BIOS
    BIOS TypeAMI 64MB SPI Flash EEPROM
    Management
    SoftwareSupermicro Thin-Agent Service (TAS)
    Supermicro Server Manager (SSM)
    SuperCloud Composer®
    Super Diagnostics Offline (SDO)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsPower-on mode for AC power recovery
    ACPI Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    Supply Chain Security: Remote Attestation
    Runtime BMC Protections
    System Lockdown
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory
    FANStatus monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    Fans with tachometer monitoring
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    Chassis
    Form Factor3U Rackmount
    ModelCSE-MX301TS-R0NDFP
    Dimensions and Weight
    Height5.2" (132.1 mm)
    Width17.26" (438.4 mm)
    Depth31.5" (800 mm)
    Package13" (H) x 29" (W) x 47" (D)
    WeightGross Weight: 70.4 lbs (32 kg)
    Net Weight: 135 lbs (61.24 kg)
    Available ColorSilver
    Front Panel
    LEDUniversal Information (UID) LED
    Expansion Slots
    PCI-Express (PCIe) Configuration
    CXL Support
    M.2
    Drive Bays / Storage
    Drive Bays Configuration(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
    2 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays
    4 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays
    Option A: Total 6 bays 6 front hot-swap E1.S PCIe 5.0 x4 NVMe* drive bays
    6 front hot-swap E1.S PCIe 5.0 x4 NVMe* drive bays
    Option B: Total 14 bays 14 front hot-swap E1.S PCIe 5.0 x4 NVMe* drive bays
    14 front hot-swap E1.S PCIe 5.0 x4 NVMe* drive bays
    Option C: Total 2 bays 2 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays
    Option D: Total 4 bays 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays
    Option E: Total 6 bays 6 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays
    6 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays
    M.2View M.2 Options
    2 M.2 PCIe 5.0 x2 NVMe slots (M-key)
    System Cooling
    Fans5 Front 8cm Fan(s)
    6 Internal 6cm Fan(s)
    Air Shroud1 Air Shroud
    Operating Environment
    Environmental Spec.Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Operating Temperature: 10°C to 35°C (50°F to 95°F)
    NamePart NumberPriceAdd to CartQty.Description
    Bundle 1MCP-220-12603-0B6E1.S_FRONT_LATCH_ASM with Tray (33.75mm height x15mm W)
    Bundle 1MCP-240-21108-0N •2Riser Bracket(2-slot) for RSC-H-68G5
    Bundle 1MCP-220-10208-0N2E1.S metal dummy cover, RoHS
    Bundle 1RSC-H-68G5 •21U LHS Hyper Riser card with one PCIe 5.0 X16
    Bundle 1BPN-E1Q5-GT214N21U 4-slot PCle GEN5 E1.S Storage backplane
    Bundle 1CBL-PWEX-1136YB-25 •1MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG,RoHS
    Bundle 1CBL-MCIO-1213M5$ 0.003MCIO x8 (STR to STR),13cm,85OHM,RoHS
    Bundle 1CBL-MCIO-1226M5R •4MCIO x8 (STR to RA),26CM,85OHM,RoHS
    Bundle 1MCP-220-30103-0N1MX301,1U height E1.S x8 Module w/o EDSFF tray,RoHS
    Bundle 1CBL-PWEX-1131-202MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS
    Bundle 2MCP-240-21108-0N •1Riser Bracket(2-slot) for RSC-H-68G5
    Bundle 2BPN-E1Q5-GT214N41U 4-slot PCle GEN5 E1.S Storage backplane
    Bundle 2CBL-PWEX-1131-201MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS
    Bundle 2CBL-MCIO-1224M5 •2MCIO x8 (STR to STR),24CM,Gen5,85OhM,RoHS
    Bundle 2CBL-MCIO-1218M5 •1MCIO x8 (STR to STR),18CM,85OHM,RoHS
    Bundle 2CBL-MCIO-1213M5$ 0.004MCIO x8 (STR to STR),13cm,85OHM,RoHS
    Bundle 2CBL-PWEX-1136YB-25 •1MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG,RoHS
    Bundle 2CBL-PWEX-1131-30$ 21.501MicroHi (2x2 to 2x2),PH3.0,30CM,9.5A/p,18 AWG, RoHS
    Bundle 2MCP-220-30103-0N2MX301,1U height E1.S x8 Module w/o EDSFF tray,RoHS
    Bundle 2MCP-220-12603-0B14E1.S_FRONT_LATCH_ASM with Tray (33.75mm height x15mm W)
    Bundle 2MCP-220-10208-0N2E1.S metal dummy cover,RoHS
    Bundle 3RSC-H-68G5 •21U LHS Hyper Riser card with one PCIe 5.0 X16
    Bundle 3MCP-240-21108-0N •2Riser Bracket(2-slot) for RSC-H-68G5
    Bundle 3CBL-MCIO-1226M5R •4MCIO x8 (STR to RA),26CM,85OHM,RoHS
    Bundle 3MCP-240-21104-0N$ 112.0012x2.5” HDD Kit for GPU Slot
    Bundle 3BPN-NVME5-826N-B2B$ 0.0012-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane
    Bundle 3CBL-PWEX-1136YB-25 •1MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG,RoHS
    Bundle 3CBL-PWEX-1131-202MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS
    Bundle 3CBL-MCIO-1218M5 •1MCIO x8 (STR to STR),18CM,85OHM,RoHS
    Bundle 4MCP-240-21104-0N$ 112.0022x2.5” HDD Kit for GPU Slot
    Bundle 4MCP-240-21108-0N •1Riser Bracket(2-slot) for RSC-H-68G5
    Bundle 4CBL-PWEX-1131-201MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS
    Bundle 4RSC-H-68G5 •11U LHS Hyper Riser card with one PCIe 5.0 X16
    Bundle 4BPN-NVME5-826N-B2B$ 0.0022-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane
    Bundle 4CBL-PWEX-1136YB-25 •1MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG,RoHS
    Bundle 4CBL-MCIO-1226M5R •2MCIO x8 (STR to RA),26CM,85OHM,RoHS
    Bundle 4CBL-MCIO-1218M5 •2MCIO x8 (STR to STR),18CM,85OHM,RoHS
    Bundle 5BPN-NVME5-826N-B2B$ 0.0032-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane
    Bundle 5CBL-PWEX-1136YB-25 •1MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG,RoHS
    Bundle 5CBL-PWEX-1131-201MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS
    Bundle 5MCP-240-21104-0N$ 112.0032x2.5” HDD Kit for GPU Slot
    Bundle 5CBL-MCIO-1218M5 •3MCIO x8 (STR to STR),18CM,85OHM,RoHS
    Bundle 6RSC-H-68G5 •21U LHS Hyper Riser card with one PCIe 5.0 X16
    Bundle 6MCP-240-21108-0N •2Riser Bracket(2-slot) for RSC-H-68G5
    Bundle 6CBL-PWEX-1131-202MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS
    Bundle 6MCP-220-10208-0N2E1.S metal dummy cover,RoHS
    Bundle 6MCP-220-12603-0B6E1.S_FRONT_LATCH_ASM with Tray (33.75mm height x15mm W)
    Bundle 6MCP-220-30103-0N1MX301,1U height E1.S x8 Module w/o EDSFF tray,RoHS
    Bundle 6CBL-MCIO-1450M5RE21MCIO x8 (STR to RE),50cm,30AWG,RoHS
    Bundle 6CBL-MCIO-1213M5$ 0.003MCIO x8 (STR to STR),13cm,85OHM,RoHS
    Bundle 6CBL-MCIO-1226M5R •3MCIO x8 (STR to RA),26CM,85OHM,RoHS
    Bundle 6CBL-PWEX-1136YB-25 •1MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG,RoHS
    Bundle 6BPN-E1Q5-GT214N21U 4-slot PCle GEN5 E1.S Storage backplane
    Bundle 7CBL-MCIO-1226M5R •2MCIO x8 (STR to RA),26CM,85OHM,RoHS
    Bundle 7RSC-H-68G5 •11U LHS Hyper Riser card with one PCIe 5.0 X16
    Bundle 7MCP-240-21108-0N •2Riser Bracket(2-slot) for RSC-H-68G5
    Bundle 7MCP-220-30103-0N1MX301,1U height E1.S x8 Module w/o EDSFF tray,RoHS
    Bundle 7MCP-220-12603-0B8E1.S_FRONT_LATCH_ASM with Tray (33.75mm height x15mm W)
    Bundle 7CBL-MCIO-1218M5R$ 60.001MCIO (x8 STR to x8 RA),18CM,85OHM,RoHS
    Bundle 7CBL-MCIO-1450M5RE21MCIO x8 (STR to RE),50cm,30AWG,RoHS
    Bundle 7BPN-E1Q5-GT214N21U 4-slot PCle GEN5 E1.S Storage backplane
    Bundle 7CBL-PWEX-1136YB-25 •1MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG,RoHS
    Bundle 7CBL-PWEX-1131-201MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS
    Bundle 7CBL-MCIO-1213M5$ 0.003MCIO x8 (STR to STR),13cm,85OHM,RoHS
    Bundle 8BPN-NVME5-826N-B2B$ 0.0022-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane
    Bundle 8CBL-PWEX-1136YB-25 •1MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG,RoHS
    Bundle 8CBL-PWEX-1131-201MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG, RoHS
    Bundle 8CBL-MCIO-1226M5R •1MCIO x8 (STR to RA),26CM,85OHM,RoHS
    Bundle 8CBL-MCIO-1218M5 •2MCIO x8 (STR to STR),18CM,85OHM,RoHS
    Bundle 8MCP-240-21104-0N$ 112.0022x2.5” HDD Kit for GPU Slot
    Bundle 8MCP-240-21108-0N •1Riser Bracket(2-slot) for RSC-H-68G5
    Bundle 8CBL-MCIO-1450M5RE21MCIO x8 (STR to RE),50cm,30AWG,RoHS
    Bundle 8RSC-H-68G5 •11U LHS Hyper Riser card with one PCIe 5.0 X16

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
