| System Memory |
| DIMM Sizes | VLP RDIMM: 32GB, 16GB, 8GB |
| Error Detection | Corrects single-bit errors |
| Memory Capacity | 16x 288-pin DDR4 DIMM slots |
| Up to 512GB VLP ECC RDIMM |
| Memory Voltage | 1.2 V |
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| System Memory | NOTE: 14-Blade can only use VLP (Very Low Profile) memory module. |
| On-Board Devices |
| Chipset | Intel® C612 Express chipset |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) |
| Network Controllers | VMDq support for better performance of virtualization |
| Intel® I/OAT 3 support for fast, scaleable, and reliable networking |
| Intel® I350 Dual port Gigabit Ethernet |
| SAS | Broadcom 3108 SAS3 (12Gbps) controller |
| HW RAID 0, 1, 5 support |
| InfiniBand Support | 4x FDR-10/QDR (40Gbps) InfiniBand or 10GbE mezzanine HCA (Optional) |
| Graphics | Aspeed AST2400 BMC |
| Input / Output |
| KVM | 1x Front Connector for SMCI KVM Card |
| DOM | 2x Super DOM (Disk on Module) ports |
| TPM | 1x TPM 1.2 20-pin Header |
| System BIOS |
| BIOS Features | USB Keyboard support |
| Plug and Play (PnP) |
| PCI 2.2 |
| ACPI up to 3.0 |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS |
| Front Panel |
| Buttons | Power On/Off button |
| KVM button |
| Connector | SUV (Serial/USB/Video) & KVM Connector |
| LEDs | Power LED |
| UID / KVM LED |
| Network Activity LED |
| Fault LED |
| Drive Bays |
| Hot-swap | 3x 2.5" Hot-swap SAS/SATA/SSD bays |
| Electromagnetic Compatibility (EMC) |
| Europe | EN55022 - Emissions |
| EN55024 - Immunity |
| EN61000-3-2 - Harmonics |
| EN61000-3-3 - Voltage Flicker |
| CE - EMC Directive 89/336/EEC |
| United States / Canada | FCC- Emissions (US) Verification |
| Safety Compliance |
| Germany | TUV |
| United States / Canada | UL60950-1 - CSA/CUL 60950-1 |
| Europe | EN60950-1, CE - Low Voltage Directive 73/23/EEE |
| Product SKUs |
| Product SKUs |
| Motherboard |

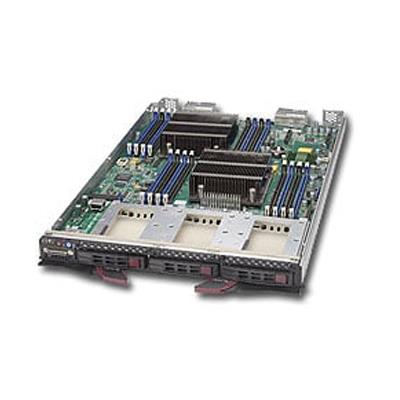

| Motherboard | Super B10DRC |
| Processor/Cache |
| CPU | Dual Socket R3 (LGA 2011) |
| Intel® Xeon® processor E5-2600 v4 † / v3 family |
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | † BIOS version 2.0 or above is required |
| Dimensions |
| Height | 11.32" (288 mm) |
| Width | 1.19" (30.2 mm) |
| Depth | 18.9" (480mm) |
| Weight | 8.6 lbs (3.9 kg) |
| Available Colors | Black |
| Operating Environment / Compliance |
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Operating Temperature: 10°to 35°C (50°to 95°F) |
| Non-operating Temperature: -40°to 70°C (-40°to 158°F) |
| Non-operating Relative Humidity: 5 to 95% (non-condensing) |
| Thermal Limitation |
| Note | SuperBlade full enclosure with four 1620W power supplies will have thermal limitation of 30°C ambient temperature. |
